Application settings
In the Tools menu, the advanced option Change configuration is available. This option allows you to customize the initial default values in some displays for the current subject (each subject can have its own settings).

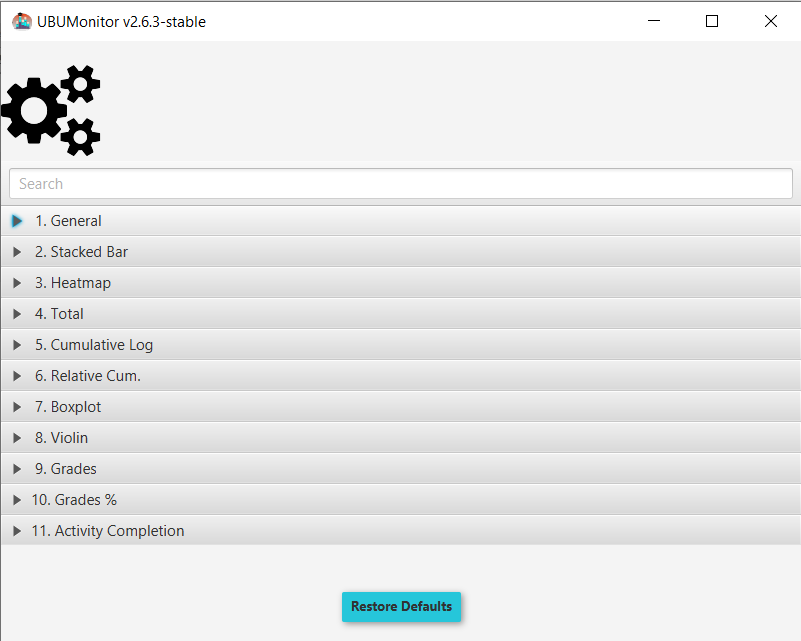

The configuration modal dialog enables text search. The changes are saved when the dialog is closed. If the initial values are to be restored, the Restore Defaults button must be selected.
The dialog shows the following sections:

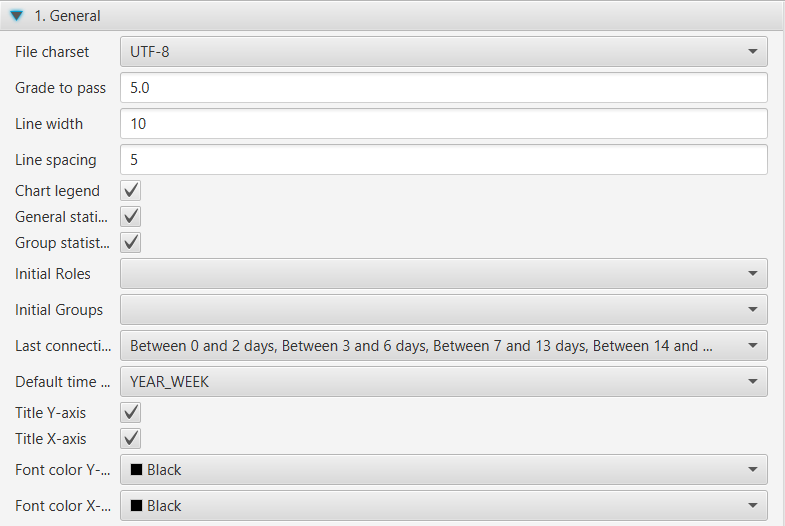

General
File encoding: character set to be used in the export of the generated
CSV
files.Cut-off mark: minimum mark that marks the qualification items or not.
Line width
Line spacing
Chart legend
General statistics
Group statistics
Initial Roles: Selection of roles that are initially marked in the filter by roles.
Initial groups: selection of groups that are initially marked in the group filter
Last connections: selection of last connection that is initially marked in the filter.
Default time unit
Y-axis title
X-axis title
Y-axis font color
X-axis font color
Stacked bars
Calculate maximum: activates automatic calculation.

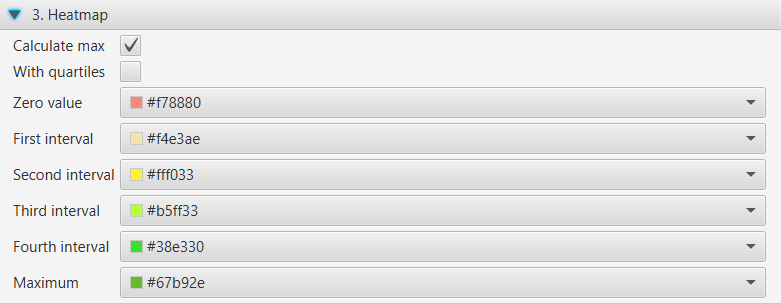

Heatmap
Calculate maximum: activates automatic calculation.
With quartiles: calculates the ranges from the quartiles of the current sample, instead of dividing the range into four equal parts.
Zero value
First interval
Second interval
Third interval
Fourth interval
Maximum
Total
Horizontal mode: changes the display of the bars to horizontal mode.
Cumulative
Calculate maximum: activates automatic calculation.
Rel. Cumulatives
Calculate maximum: activates automatic calculation.
Zero line color: color applied to the line representing the average
Zero line width
Boxplot
Horizontal mode: changes the display of the boxplot to horizontal mode.
Decimal information: number of decimals to be displayed in the tooltips with the statistical data.
Violin
Horizontal mode: changes the display of the violin to horizontal mode.
Decimal information: number of decimals to be displayed in the tooltips with the statistical data.
Grades
Fail grade color: taking into account the cut-off grade set in the General section.
Passed grade color: taking into account the cut-off grade set in the General section.
Grades %
Empty rating color
Fail grade color: taking into account the cut-off grade set in the General section.
Passed grade color: taking into account the cut-off grade set in the General section.
Activity Completion
Set the colors for the different intervals of the progress bar.
